Managing KSML Applications

This guide shows you how to register a KSML application, configure its definition and deployment, start it, and manage its lifecycle in Self-Service.

Type

How-to guide

Goal

Register a KSML application, configure its definition and deployment, start it, and manage its lifecycle.

Audience

A user who can edit applications in Self-Service (a member of the owning group).

When to use

Use this guide when you want to run a KSML streaming application on the Axual Platform.

Contents

The sections below cover each task in this guide:

Creating KSML Applications

To create a KSML application, register it in Self-Service as you would any other application, then choose the Managed KSML application type.

  1. Visit the Applications page (Applications) and click New Application.

  2. Fill out the form:

    • ID: a string that uniquely identifies your application. The maximum length is 255 and the value should be alphanumeric with no spaces; the _ character is allowed.

      The Application ID is used by consuming applications to keep track of where they left off consuming messages from a topic. Consumers sharing the same ID share the events on a topic, so one event can be read by only one consumer with the same Application ID (see the Kafka documentation on consumer groups).
      KSML is Kafka Streams based, so the application.id must not collide with an existing Kafka Streams application or topic. This is checked during authentication configuration, see prefixed ACLs.

    • Name: the name of the application. It should not be more than 50 characters.

    • Short Name: a unique human-readable short name, used as a label in Self-Service. The maximum length should not exceed 60 characters.

    • Owner: choose the group that will own this application. Is it not available yet? See Creating a group.

    • Application Type: choose Managed KSML.

    • Visibility: see Application visibility.

    • Description: a short summary describing the purpose of this application. It must not exceed 200 characters.

    • Properties: allows you to add additional metadata as key-value pairs to describe the application.

  3. Press Add Application.

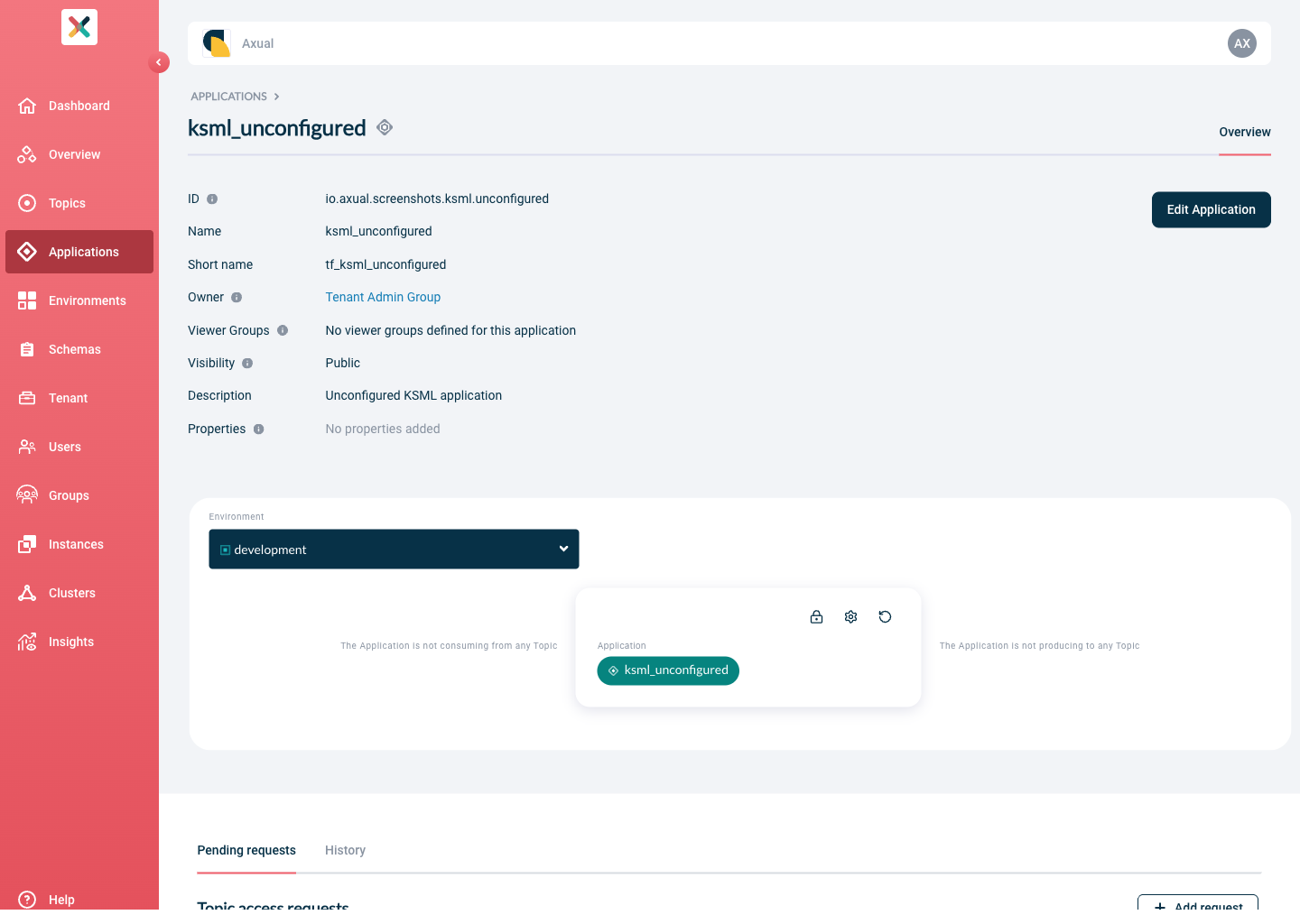

Self-Service KSML Application Detail

Configuring and starting KSML Applications

A KSML Application needs two sets of configuration for every environment in which it’s deployed:

  1. Configuration: Includes the KSML YAML definition and deployment configurations.

  2. Authentication: Same as any other Application, see Authentication configuration.

Axual "Self-Service" UI, section of the "Application" page, showing the security and configuration modal of an unconfigured KSML Application, with the blue circle indicators on both configuration buttons

A blue indicator is shown if any Configuration is still missing.

Configuration

To configure the application, click the Gear icon in the application box; hovering over it shows 'Configuration'. This opens the Configuration modal, which contains two tabs, KSML Definition and Deployment:

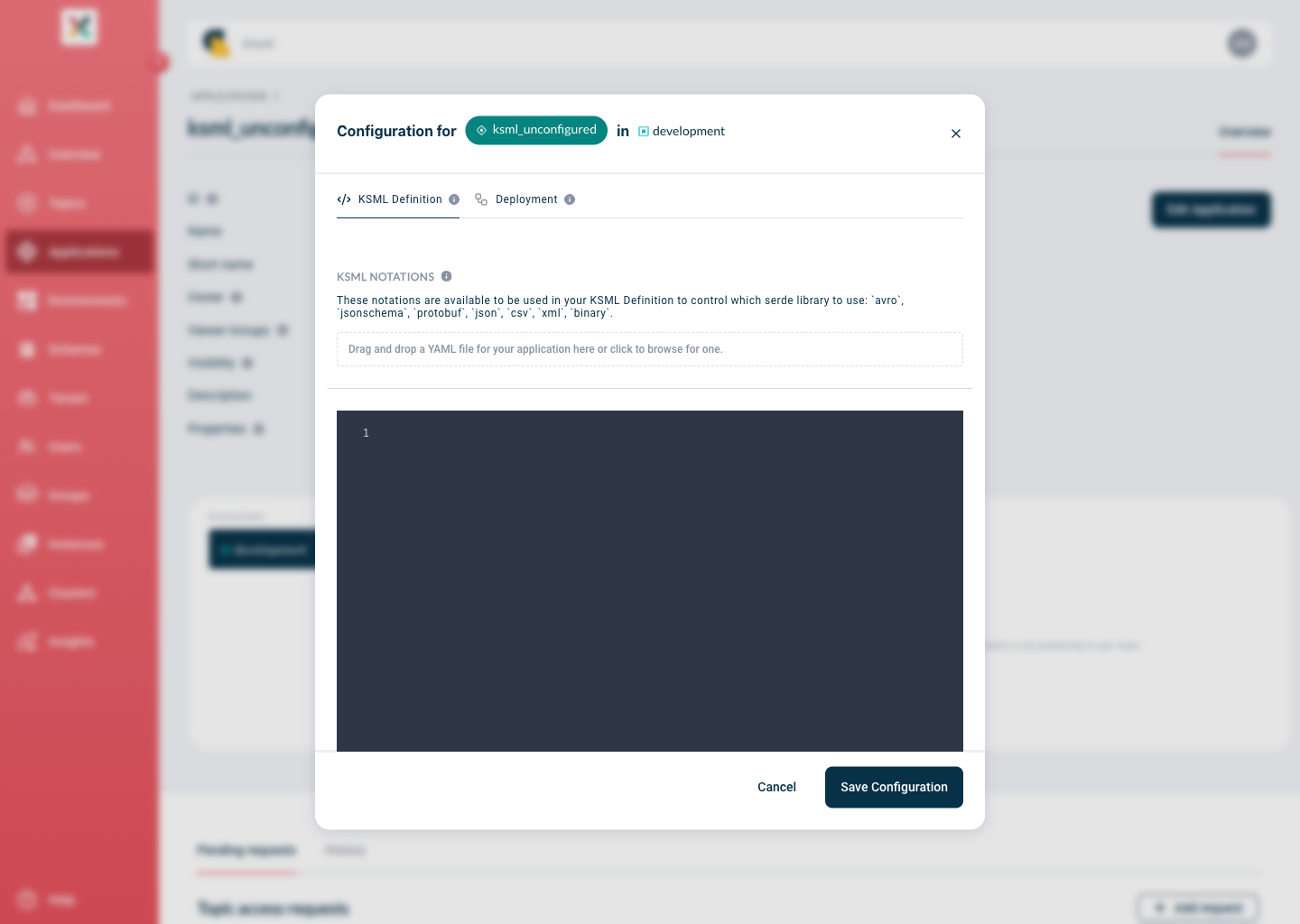

Axual "Self-Service" UI, "Application" page showing the KSML-definition and Deployment tabs of an unconfigured ksml-application

KSML Definition

In this tab, you can provide the KSML Application Definition in one of two ways:

  • Type directly into the editor inside the modal.

  • Drag and drop an existing YAML file into the modal.

Deployment

In this tab, you can configure the runtime settings for your application, including:

  • Deployment Size

  • Automatic Restart

Deployment Size

This setting allows you to select the CPU and memory profile for your application. Configure it from the Deployment tab in the Configuration modal.

Select your preferred deployment size from the dropdown, or leave it unchanged to use the default setting. For guidance on which size to choose based on your pipeline and expected load, see Choosing a Deployment Size.

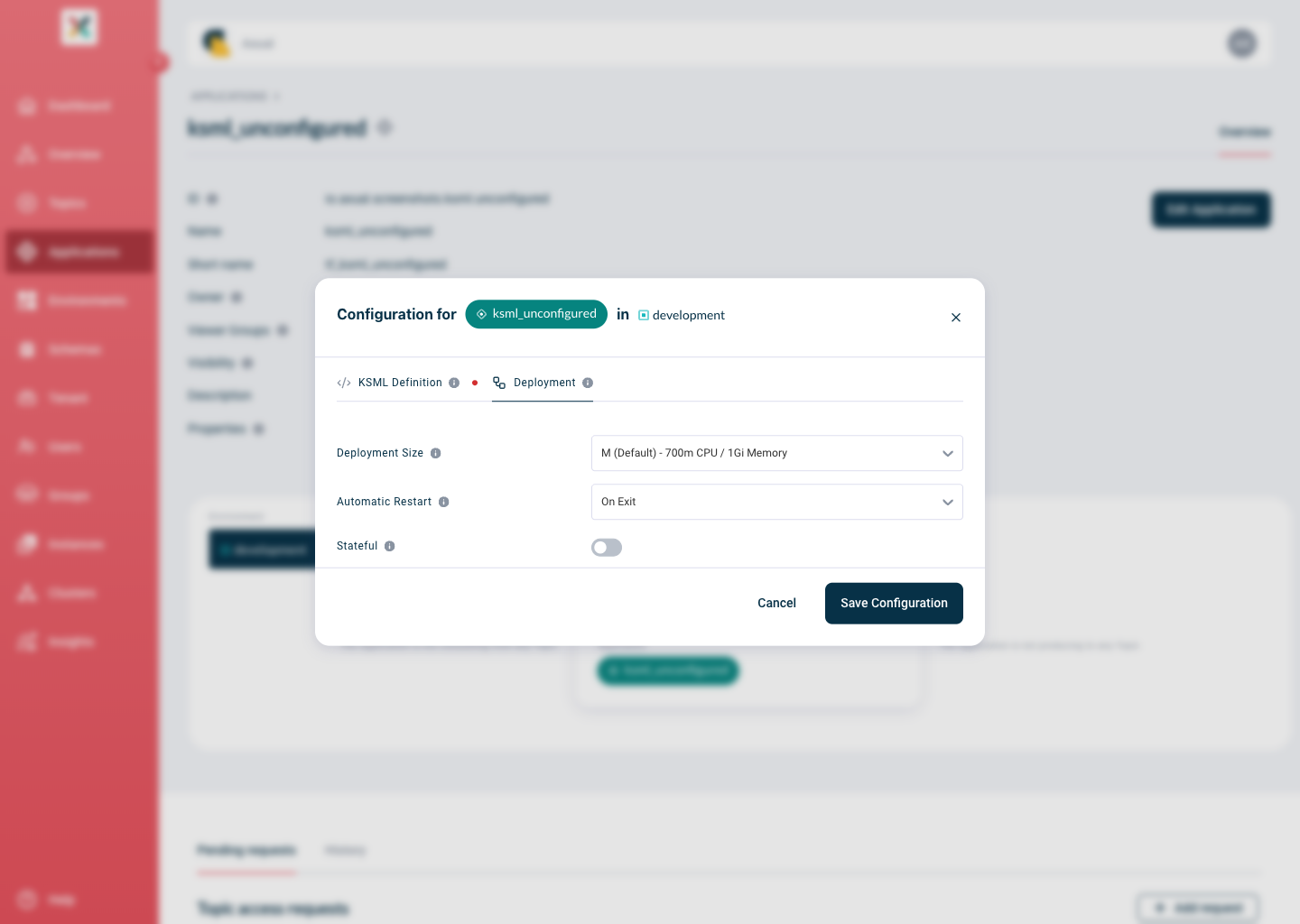

Axual "Self-Service" UI, "Application" page showing the Deployment Size with the default value in the "Deployment" tab

Click Save when done.

If you start the application without selecting a deployment size, it will run using the default profile, shown as (Default) in the dropdown list.

Automatic Restart

This setting determines the approach taken by the provisioner in case the application exits. The two options are On Exit (default) and Never.

  • On Exit results in a Kubernetes StatefulSet resource deployed; this is typical for any streaming application that by definition needs to always be running.

  • Never results in a Kubernetes Job resource deployed; this has a completion state and should be picked if it is unnecessary for this application to be restarted (e.g., a Generator application that produces a given number of messages).

Stateful (Persistent Volumes)

KSML applications that use Kafka Streams state stores can configure persistent storage to preserve application state across restarts.

Configuration Options:

  • Stateful: Enable or disable persistent volume storage for state stores

  • Disk Size: Specify the size of the persistent volume (in MB or GB)

For additional configuration required to ensure that the Persistent Volume feature works as expected, refer to the Runtime Provisioner readme.

  • State store size cannot be decreased once set; only increases are allowed

  • Changes to state store configuration are only allowed when the application is undeployed

  • The effective PersistentVolume (PV) size is determined by the underlying Kubernetes infrastructure and may differ from the requested size.

Removing State Store Data

To delete the persistent volume and all stored state, follow these steps:

  1. Ensure your application is in the Undeployed state (click STOP if needed)

  2. Open the Configuration modal and navigate to the Deployment tab

  3. Disable the Stateful option

  4. Click Save

The persistent volume and all state data will be permanently deleted.

Security configuration

Authentication is done in the same way as for any Application type, see Authentication configuration.

Apicurio Registry credentials

If the environment’s Instance uses Apicurio Registry, the KSML application needs Apicurio Registry credentials to resolve and register schemas. Platform Manager provisions these automatically: on every start, it checks whether a valid BasicAuth credential pair already exists for that environment, and generates one if it doesn’t.

This is fully automatic. You do not generate or manage these credentials yourself, and the Apicurio Registry section of the Authentication modal (described in Generating Apicurio Registry Credentials) does not apply to Managed KSML applications.

This behaviour only applies when the environment’s Instance uses Apicurio Registry; it doesn’t apply to instances using the Confluent-compatible registry.

Requesting Topic Access

Your KSML application needs authorisation to produce to or consume from a Kafka topic before it can start.
Follow the steps to grant it access.

Application Lifecycle

Applications are helm installed on the Kubernetes cluster where the Instance’s configured Provisioner runs. The Platform Manager automatically polls application status, and the current state is displayed on the Application card.

For the actions, states, and status mapping, see KSML application states.

Start

When the Application is properly configured, START becomes enabled. Clicking it results in helm deploying the KSML definition you have provided on Kubernetes. The application will transition through different states: first STARTING while Kubernetes provisions resources, then RUNNING within seconds, if all goes well and the application is running successfully.

If the status changed to FAILED, you can observe the Application through the logging (see below).

Viewing KSML Logging

As soon as you have started your KSML application, you can consult the KSML Application logs to get a deeper insight into the status of the application beyond the status indicator.

On the KSML Application card, click on the "Logs" button. The following screen shows.

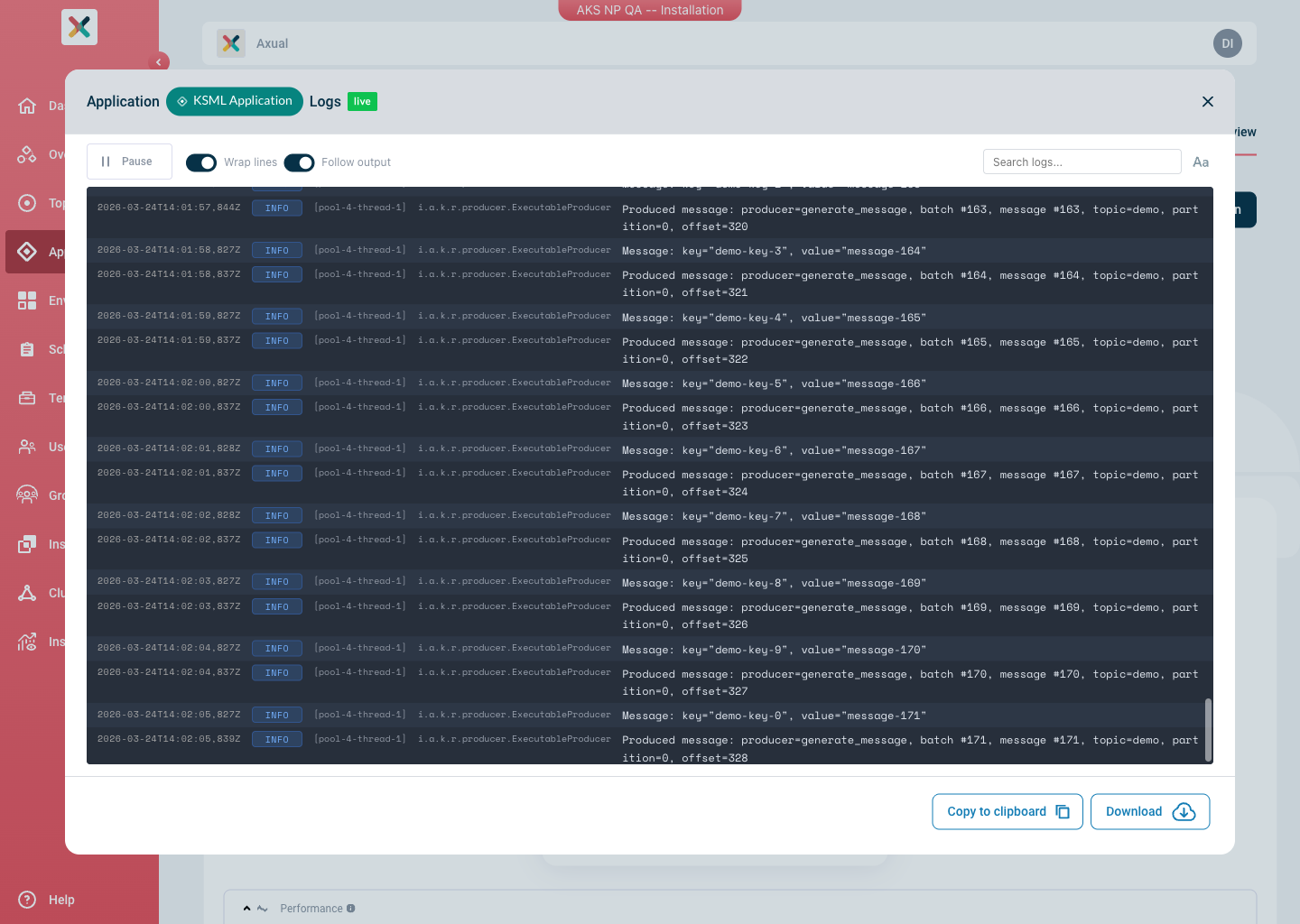

Axual "Self-Service" UI, "Application" page showing the KSML application log console

The console streams the log while the application runs, and lets you pause it, follow the newest line, wrap long lines, search the output, and copy or download what it holds. For each of those controls, see Viewing Application Logs.

Viewing KSML Metrics

You can see usage metrics for a KSML application on the "Insights" section of the KSML Application card, and the "Performance" section beneath.

The Insights section shows gauges for CPU and Memory usage based on the maximums defined for the app.

The Performance section displays live updating graphs for CPU and Memory that start empty on first load of the page and build the usage history.

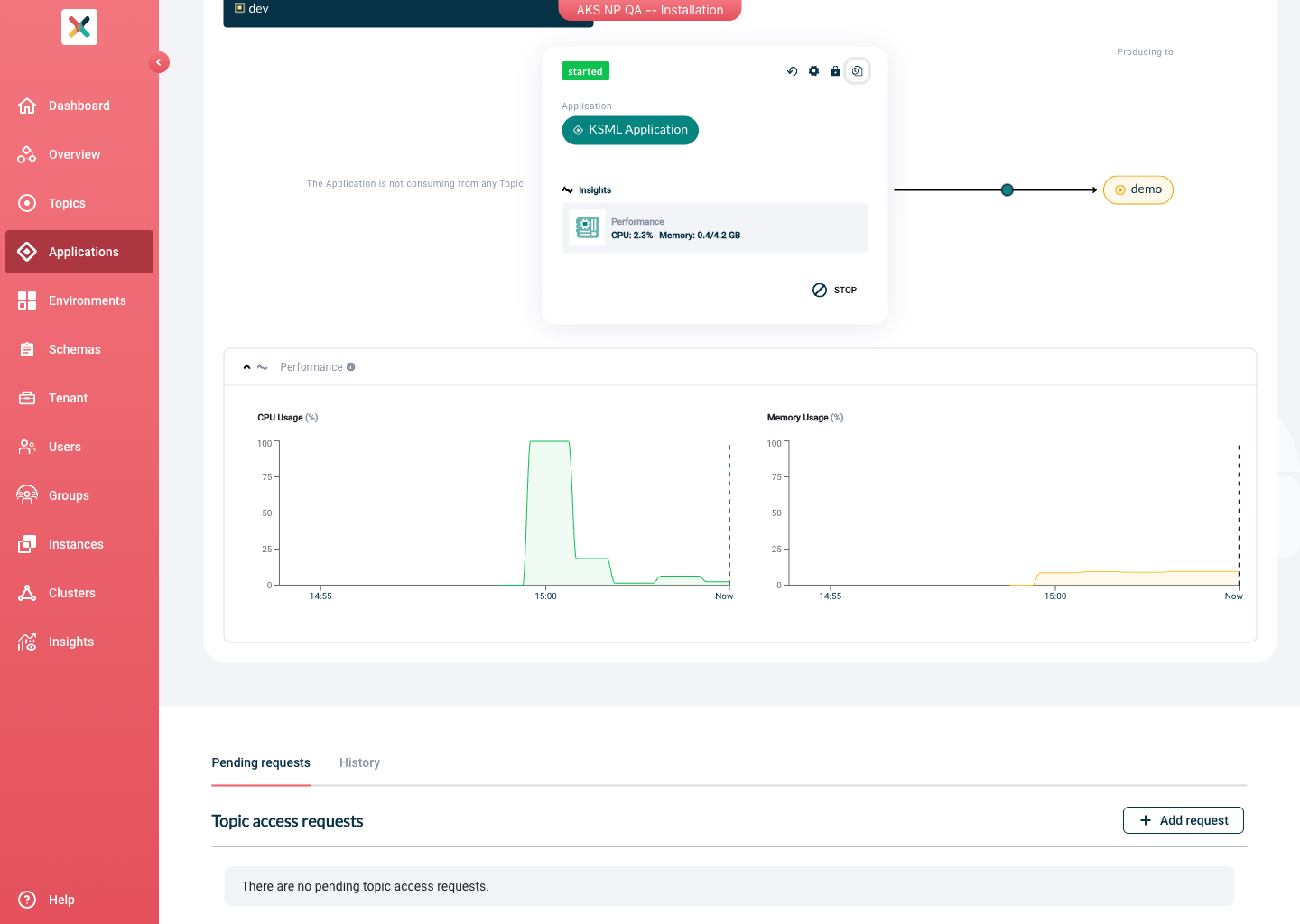

Axual "Self-Service" UI, "KSML Application" page showing the Metrics section

Performance metrics are collected in real-time while the page is open and are not persisted. Keep the page open to collect more data, which is discarded when you close the tab.

Stop

Stop the application by clicking the STOP button on the Application card, which undeploys it from Kubernetes. The application is removed from the cluster. If the Stateful option is enabled, the PVC is left intact.

Resetting a KSML application

Resetting clears the application’s committed consumer offsets so it reprocesses from the configured point. For a Managed KSML application it also clears the attached persistent volume claim (PVC), so the application restarts without any persisted state store.

See Resetting a Kafka Streams Application for the procedure.

Deleting a KSML application

Follow the docs to remove the application.

Deleting the KSML Application results in all KSML deployments being stopped on all environments.
