Topic metrics
Topic Size Metrics
These metrics are calculated across several brokers and partitions.
The following steps are followed to calculate the metrics:
-
Values get queried across all the replicas (represents values of all partitions with replicas)
-
Values get aggregated using
sumaggregation function by pod (represents value for requested topic per pod)
For these metrics, all aggregation functions and groupBy are supported.
Topic Rate Metrics
These metrics are calculated by performing a Prometheus’s rate function.
The rateSize by default is 5 minutes, but it can be set to anything you prefer.
Rate function takes several data points back in time and calculates mean value.
Using rateSize

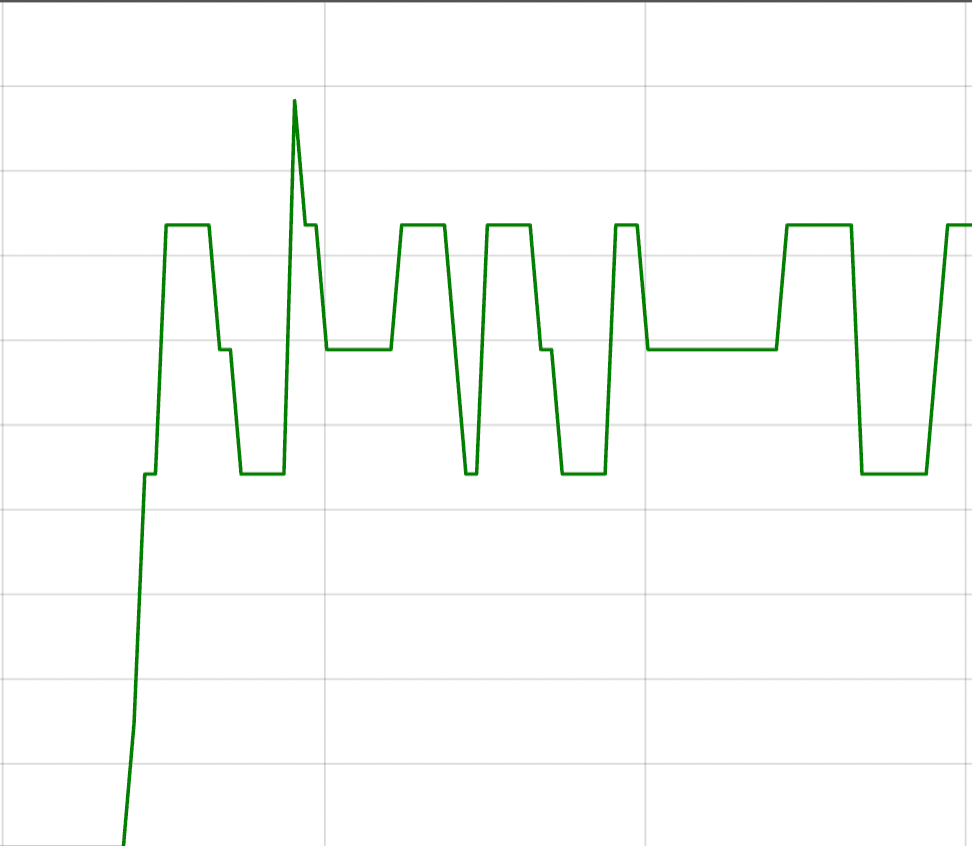

Decreasing the rateSize will make the result more "sharp", since window would contain fewer data points and spikes will be visualized better.

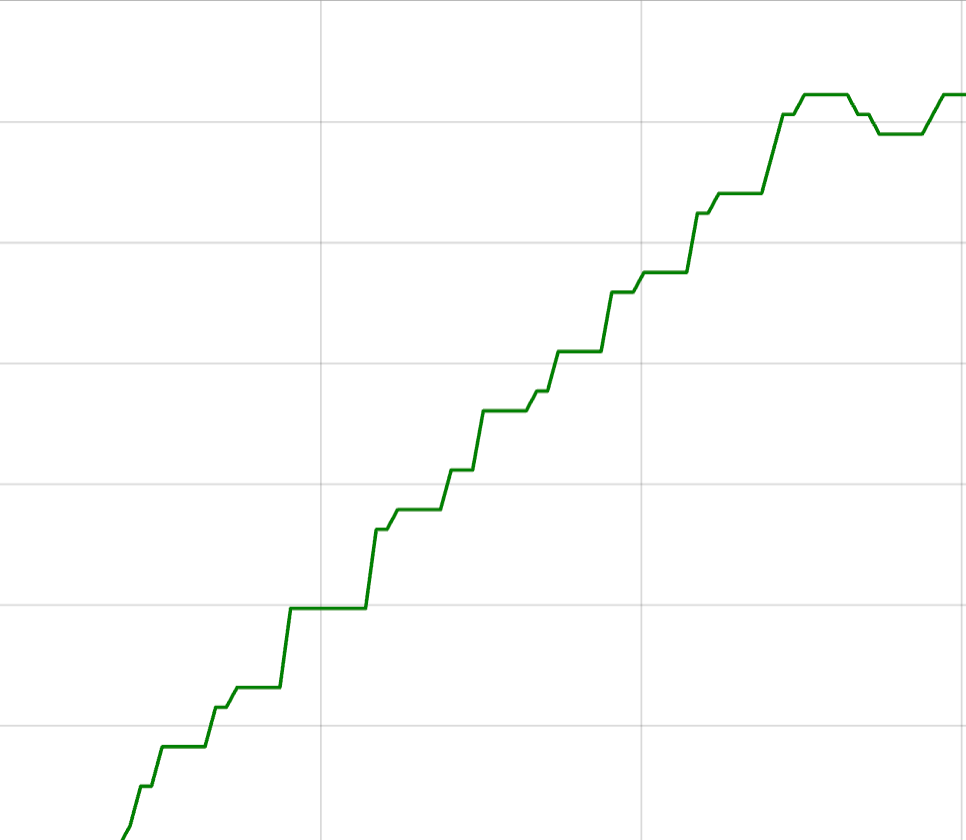

Increasing the rateSize will make the result more "smooth", since window would contain more data points and producing/consuming spikes will be smoothed.
| We suggest to take a look at this article that tries to explain how the rate function works in Prometheus. |
As mentioned in the Topic Rate description section, rateSize can be changed for different result.
Below is the examples of using different rate size.
Request with rateSize of 5 minutes
{
"metric": "io.axual.stream/incoming_byte_rate",
"rateSize": "PT5M",
"stepSize": "PT1M",
"timeWindow": "PT15M",
"filter": {
"type": "AND",
"filters": [
{
"type": "FIELD",
"field": "environment",
"operation": "EQUALS",
"value": "dev"
},
{
"type": "FIELD",
"field": "stream",
"operation": "EQUALS",
"value": "payment-events-stream"
}
]
}
}
Response with rateSize of 5 minutes
{
"type": "UNGROUPED",
"dataPoints": [
{
"timestamp": "2022-10-25T09:33:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:34:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:35:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:36:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:37:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:38:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:39:00",
"value": 81.83703703703705,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:40:00",
"value": 245.51111111111115,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:41:00",
"value": 409.1851851851852,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:42:00",
"value": 818.3703703703704,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:43:00",
"value": 900.2074074074075,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:44:00",
"value": 900.2074074074075,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:45:00",
"value": 1063.8814814814814,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:46:00",
"value": 1063.8814814814814,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:47:00",
"value": 1063.8814814814814,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:33:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:34:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:35:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:36:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:37:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:38:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:39:00",
"value": 81.83703703703705,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:40:00",
"value": 245.51111111111115,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:41:00",
"value": 327.3481481481482,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:42:00",
"value": 327.3481481481482,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:43:00",
"value": 572.8592592592593,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:44:00",
"value": 491.0222222222223,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:45:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:46:00",
"value": 818.3703703703704,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:47:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:33:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:34:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:35:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:36:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:37:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:38:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:39:00",
"value": 81.83703703703705,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:40:00",
"value": 491.0222222222223,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:41:00",
"value": 818.3703703703704,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:42:00",
"value": 1145.7185185185185,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:43:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:44:00",
"value": 1697.1666666666667,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:45:00",
"value": 1227.5555555555557,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:46:00",
"value": 1145.7185185185185,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:47:00",
"value": 1227.5555555555557,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
}
]
}
Request with rateSize of 1 minute
{
"metric": "io.axual.stream/incoming_byte_rate",
"rateSize": "PT1M",
"stepSize": "PT1M",
"timeWindow": "PT15M",
"filter": {
"type": "AND",
"filters": [
{
"type": "FIELD",
"field": "environment",
"operation": "EQUALS",
"value": "dev"
},
{
"type": "FIELD",
"field": "stream",
"operation": "EQUALS",
"value": "payment-events-stream"
}
]
}
}
Response with rateSize of 1 minute
{
"type": "UNGROUPED",
"dataPoints": [
{
"timestamp": "2022-10-25T09:33:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:34:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:35:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:36:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:37:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:38:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:39:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:40:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:41:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:42:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:43:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:44:00",
"value": 736.6315508734498,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:45:00",
"value": 2209.6,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:46:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:47:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-2",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:33:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:34:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:35:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:36:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:37:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:38:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:39:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:40:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:41:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:42:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:43:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:44:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:45:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:46:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:47:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-1",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:33:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:34:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:35:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:36:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:37:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:38:00",
"value": 0,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:39:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:40:00",
"value": 3682.6666666666665,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:41:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:42:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:43:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:44:00",
"value": 1280.3666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:45:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:46:00",
"value": 736.5333333333333,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
},
{
"timestamp": "2022-10-25T09:47:00",
"value": 1473.0666666666666,
"labels": {
"axual_cluster": "jupiter",
"pod": "jupiter-kafka-0",
"topic": "axual-qa-dev-payment-events-stream"
},
"unit": "Bytes"
}
]
}
Visual comparison
With rateSize of 5 minutes:
With rateSize of 1 minute:
