Schema Management
Uploading a Schema
|
Make sure the uploaded schema is used in the Producer / Consumer application in exact same form. If you are uploading a schema that has not references to other schemas you can upload the avsc file or if you are uploading a schema that has references to other schemas you can upload the compiled schema file. If you use a plugin such as the avro-maven-plugin for schema maintenance, make sure to upload the source schema files. |
-

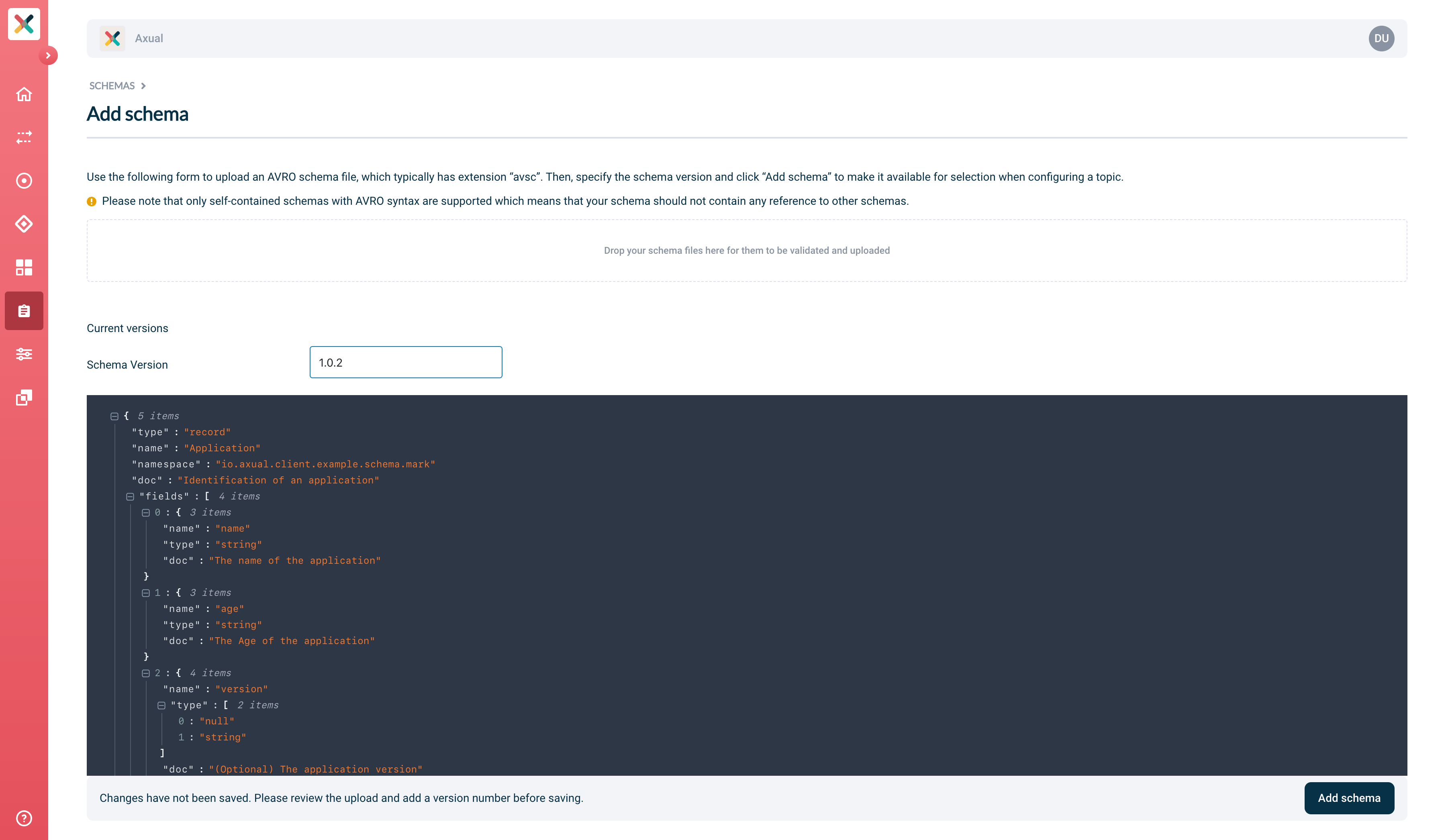

Visit the schema page and click on Add Schema button
-
Upload the schema as a text file (avsc format). The Avro syntax will be validated as soon as the file has been uploaded.
-
Add the version for the schema
-
Click Add schema
-
Any authenticated user can upload a schema for their tenant.
Error scenarios

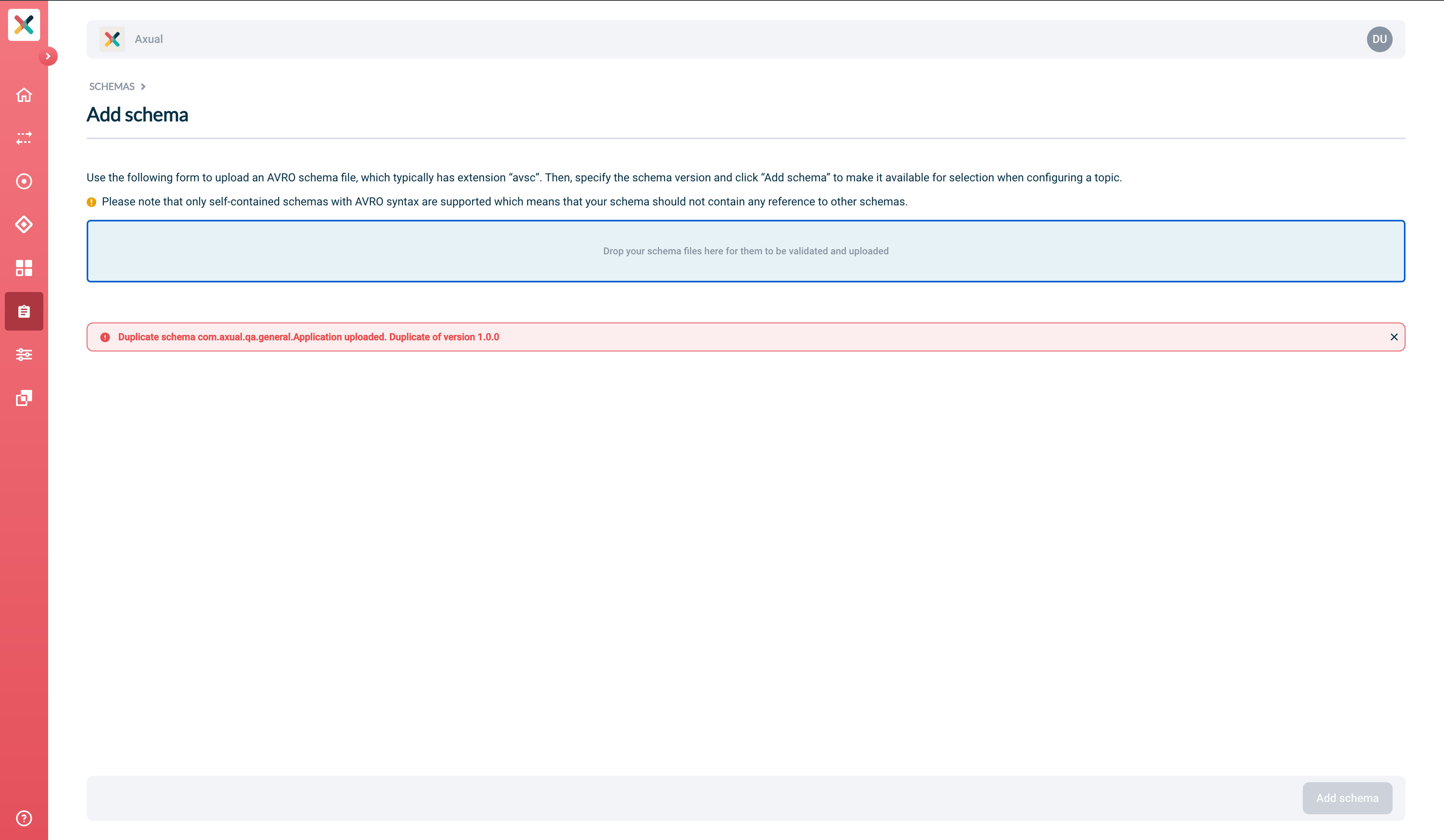

Duplicate schema
An attempt at uploading a duplicate schema for a tenant is rejected with an error message containing the duplicated version as shown below:
Incompatible schema
In some situations you want to force the use of an incompatible schema. As of Axual 2021.3 it is possible to force apply a schema.

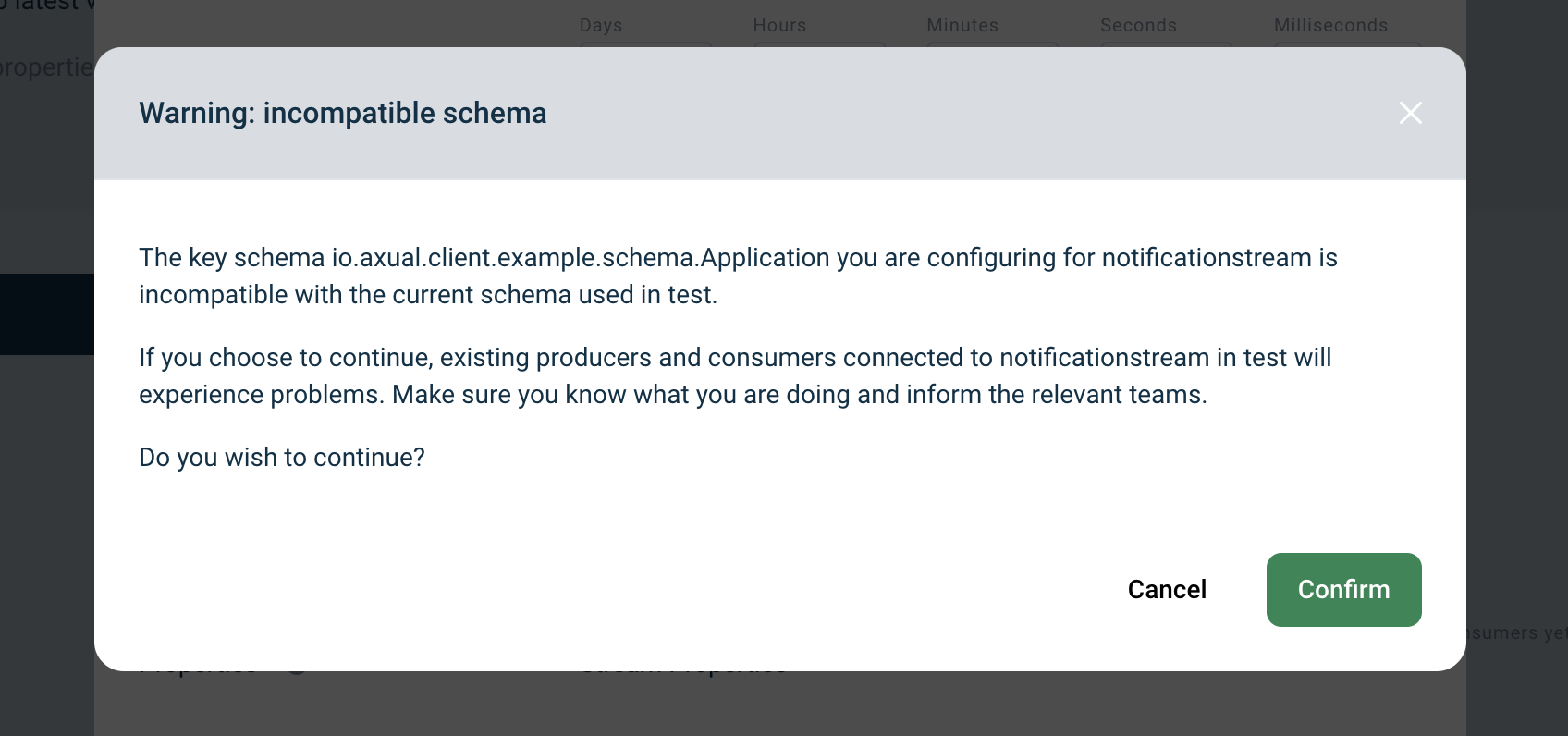

When selecting an incompatible schema, the following modal is shown.
Click "Confirm" if you want to force updating the schema to the incompatible one.
| make sure to inform anyone who is using your topic, especially in an acceptance or production environment |
Viewing and Downloading Schemas used on a topic
Viewing a Schema
-

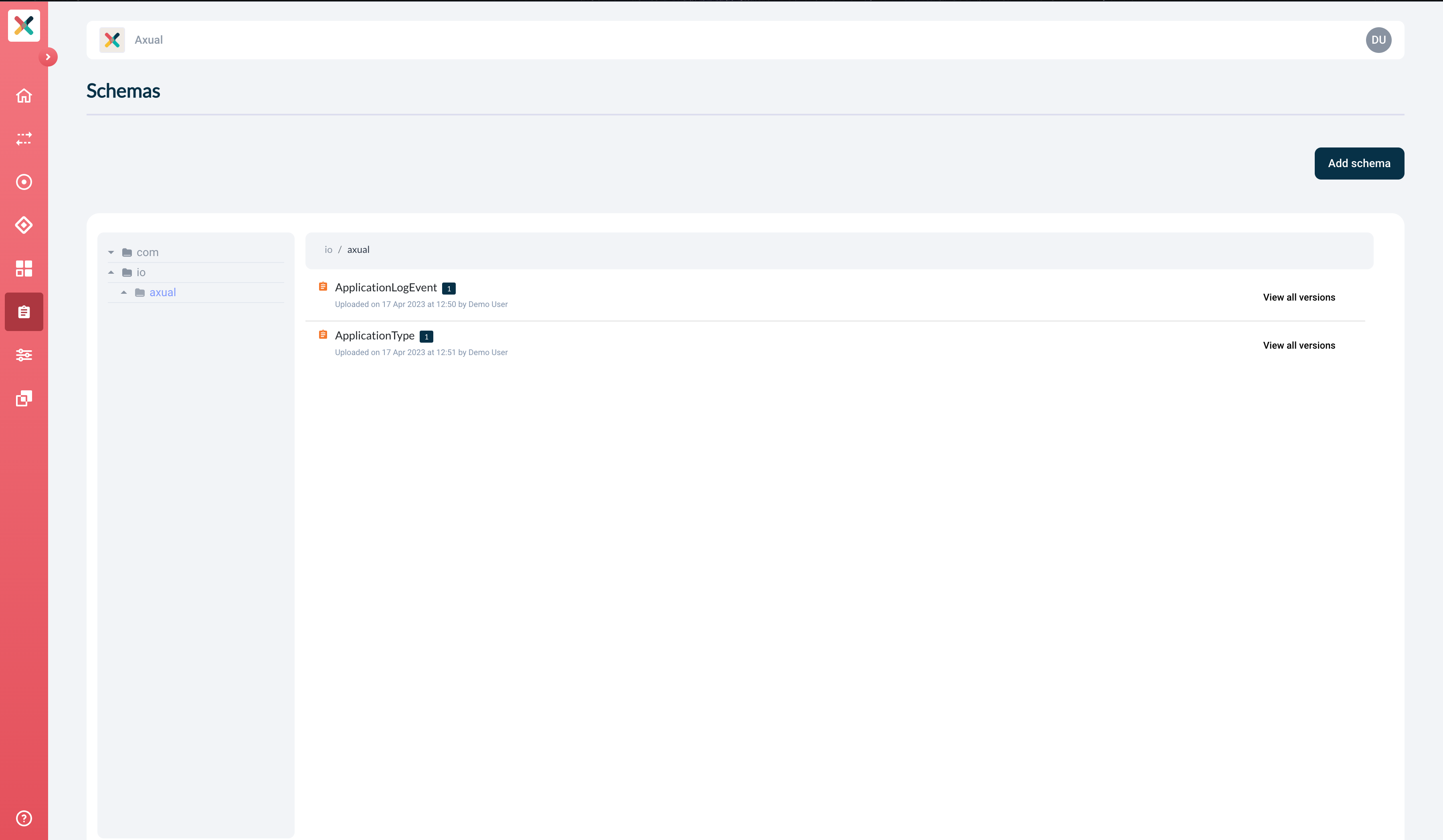

Visit the schema page
-
On the left column of the page, the schemas are grouped into namespaces with a folder icon. Click on a group to expand it.
-
The content is displayed on the right column.
-

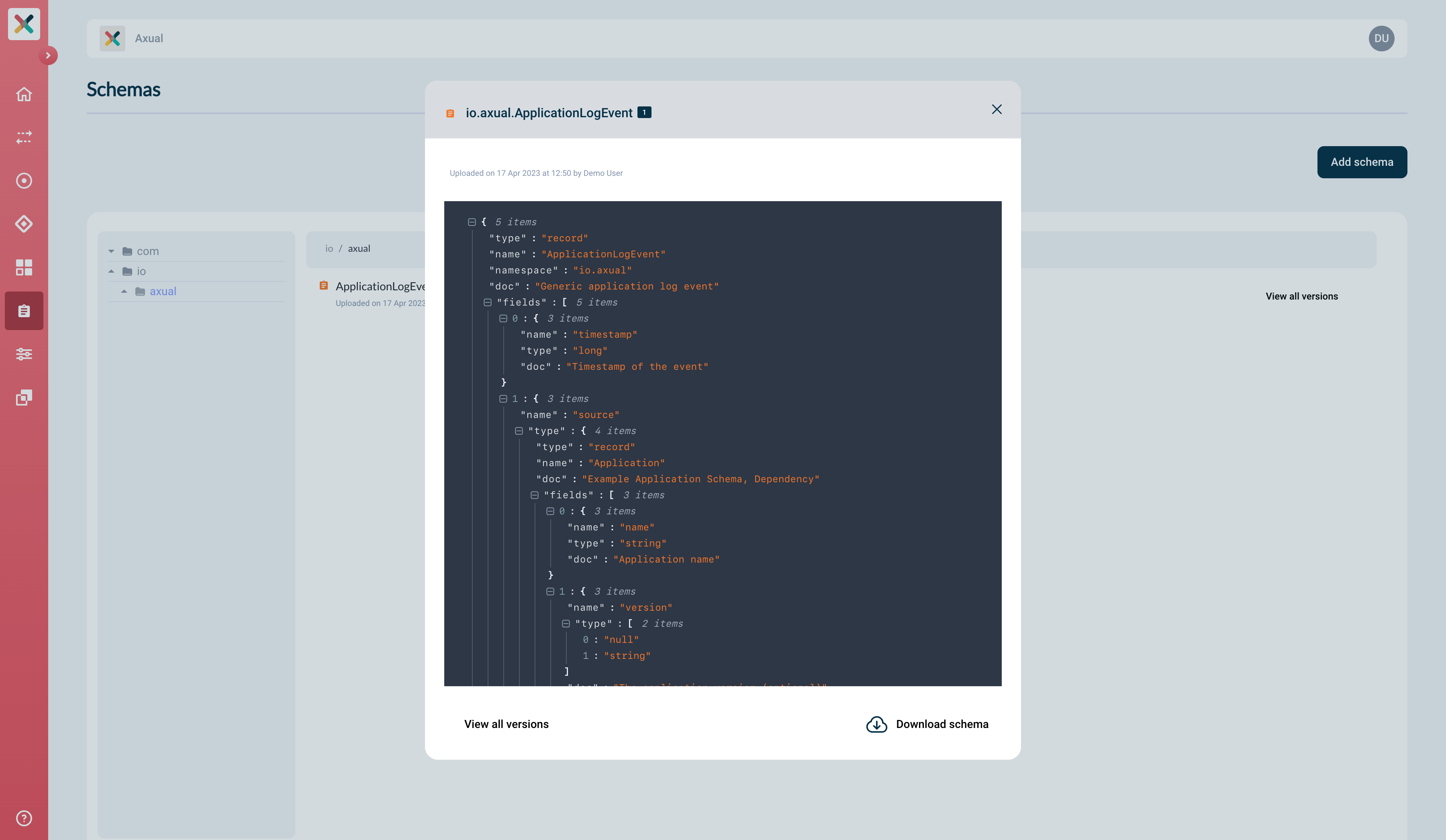

Click on the file to view the Schema
-

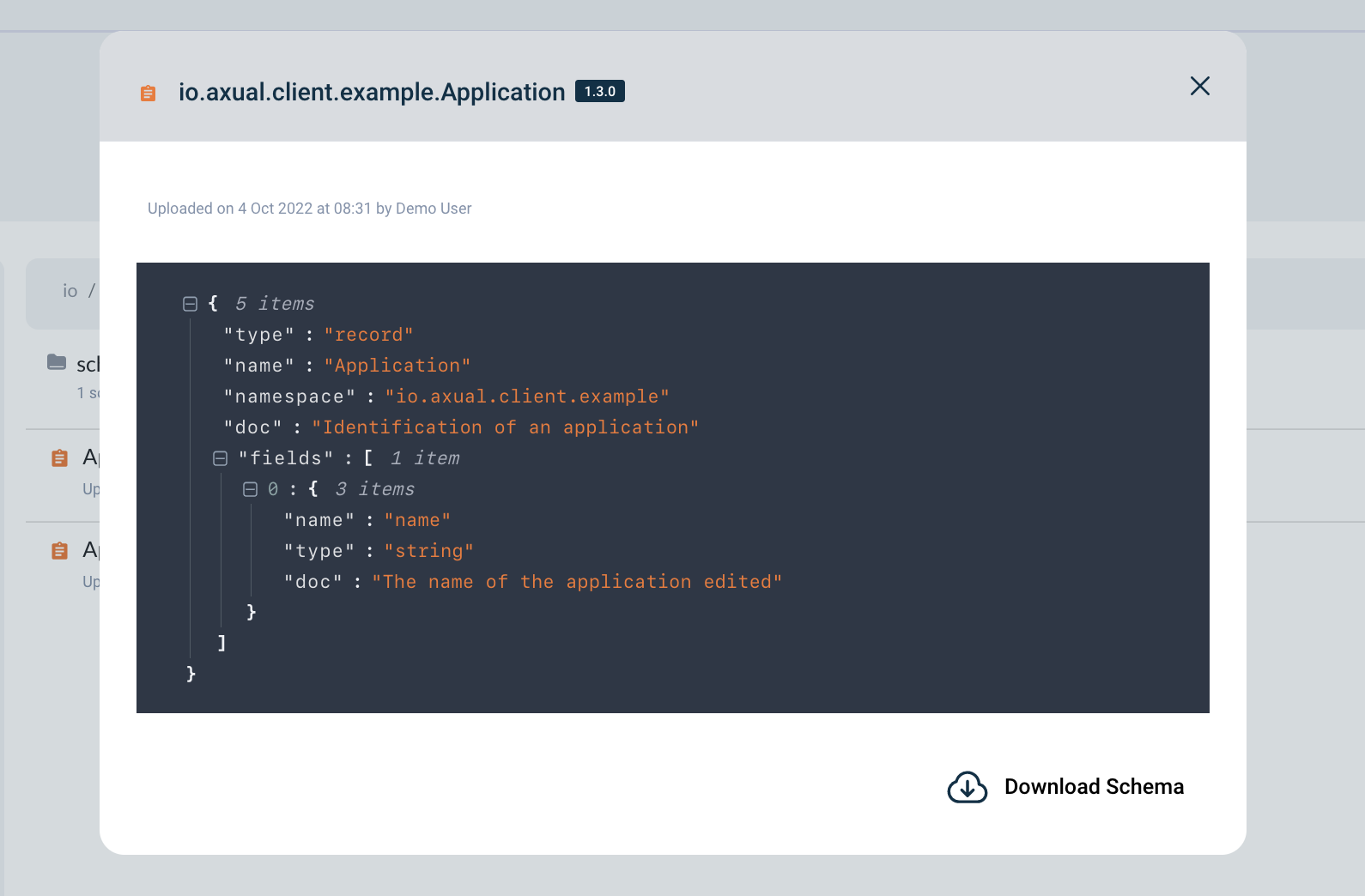

A modal will open displaying the content of the Schema

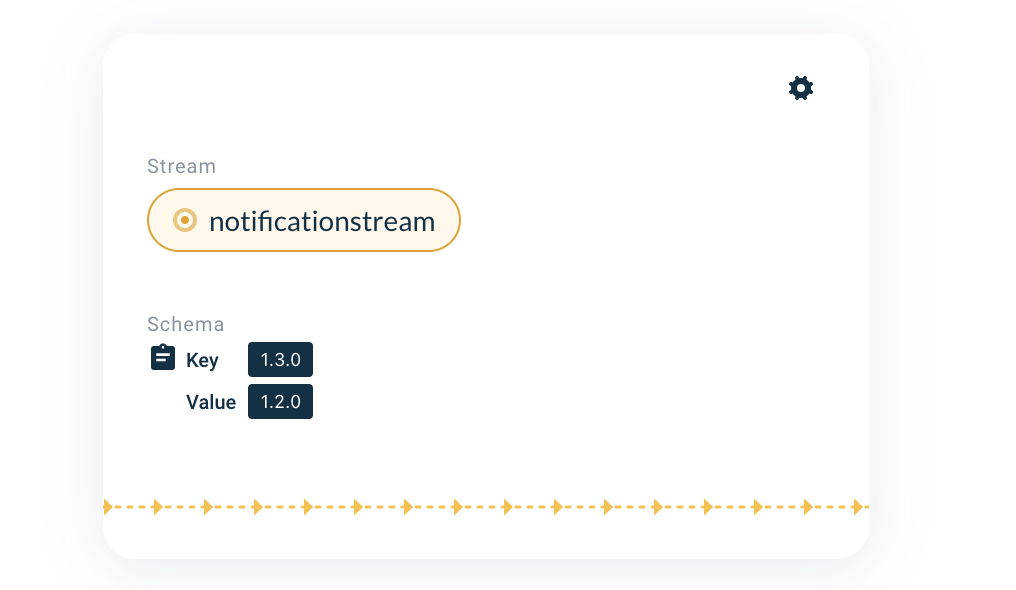

You can also view a schema from the Topic Details page. . On the topic card, there is a schema section.
-
Click on the version number of the schema.
-
You will be presented with the schema
