Organization Manager 0.3.2 Readme

Overview

The Organization Management component manages organizations (tenants) for the Axual Self-service platform.

It is a stateless component that handles user signups, user invites and SSO integration of the organization with either Auth0 or Keycloak.

Application overview

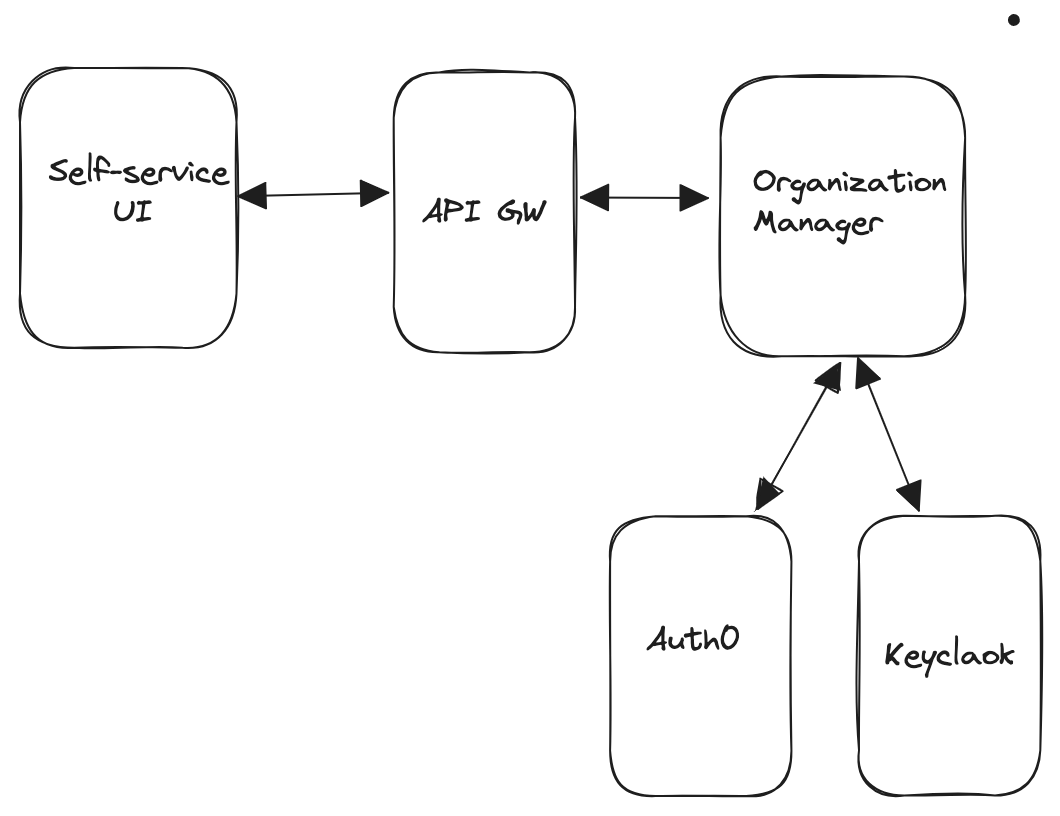

Figure 1. Application overview

How to Run a Local Environment

1. Using Auth0 as Authentication Server

Get Auth0 Environment Variables

  • Open Applications > APIs

    • Create a new API named Organization Management API

    • Provide an Identifier (should end with the domain of where it’s supposed to run e.g org.mgmt.byok.np.axual.cloud)

  • Open Applications > APIs > Auth0 Management API

    • Goto Machine to Machine Applications tab

    • Authorize the created Organization Management API

  • Open the drop-down beside the Authorized switch/button

  • Assign permissions

    • create:users

    • read:users

    • update:users

    • delete:users

    • create:users_app_metadata

    • read:users_app_metadata

    • update:users_app_metadata

    • delete:users_app_metadata

  • Press Update button to save the permissions

  • Go to the Auth0 portal and use the Auth0 Management API identifier as your audience

  • Goto Organization Management API (Test) from the Applications menu

  • In the Settings tab, copy the domain, clientId and clientSecret values and paste in the corresponding env variables

Provide the following values as config

{
  "authStrategy": "auth0"
  "auth0Domain": "{auth0 domain registered in auth0 portal for the API application in Applications}"
  "auth0ClientId": "{auth0 client ID registered for the API application in Applications}"
  "auth0ClientSecret": "{auth0 client secret registered for the API application in Applications}"
  "auth0Audience": "{auth0 API audience of the Auth0 Management API in auth0 portal}"
  "auth0DatabaseName": "{auth0 name of the db connection in auth0 portal}"
}
Name Possible Values Required Description

authStrategy

auth0

True

the authentication provider for the installation

auth0Domain

string

True

domain registered in the auth0 portal for the application

auth0ClientId

string

True

client ID registered for the application in auth0 portal

auth0ClientSecret

string

True

client secret registered for the application in auth0 portal

auth0Audience

string

True

API audience of the Auth0 Management API in the portal

auth0DatabaseName

string

True

name of the db connection in auth0 portal

2. Using Keycloak as Authentication Server

Get Keycloak Environment Variables

  • Go to the Keycloak portal and login

  • Note your login username and password as keycloakCLIUsername and keycloakCLIPassword respectively

  • Paste your keycloakDomain, keycloakCLIUsername and keycloakCLIPassword in the corresponding env variables

Provide the following values as config

{
  "authStrategy": "keycloak"
  "keycloakDomain": "{full https keycloak domain registered in keycloak portal}"
  "keycloakCLIUsername": "{keycloak admin-cli username that is used to login into the admin console}"
  "keycloakCLIPassword": "{keycloak password that is used to login into the admin console}"
  "tlsVerification": "{toggle tls veriification}"
  "trustStore":"{path to the CA certificate file for validating `tls`}"
}
Name Possible Values Required Description

authStrategy

keycloak

True

the authentication provider for the installation

keycloakDomain

string

True

full https keycloak domain registered in keycloak portal

keycloakCLIUsername

string

True

keycloak admin-cli username that is used to login into the admin console

keycloakCLIPassword

string

True

keycloak password that is used to login into the admin console

tlsVerification

boolean

False. Defaults to false

Toggle tls verification

trustStore

string

False

path to the CA certificate file for validating tls connection
