Apicurio Schema Registry

Apicurio is the alternative solution to Axual schema registry offering.

If you are currently on Axual Schema Registry and want to migrate your schemas to Apicurio it is recommended you follow the migration guide.

Docker Environment Variables

To run the Apicurio Schema Registry as a docker container, the docker minimal list of environment variables should be provided (listed below).

For any additional settings for Apicurio, please, visit Official website or GitHub Repo

For Quarkus - Official website

Configuration

Required

Description

Default Value

ENABLE_CCOMPAT_CANONICAL_HASH_MODE

Yes

Canonical hash mode (compatibility API)

false

ENABLE_CCOMPAT_LEGACY_ID_MODE

Yes

Legacy ID mode (compatibility API)

true

KAFKA_BOOTSTRAP_SERVERS

Yes

Kafka Bootstrap Servers

<no default>

REGISTRY_KAFKASQL_TOPIC

Yes

Kafka Topic to store schemas

kafkasql-journal

REGISTRY_KAFKASQL_TOPIC_AUTO_CREATE

No

Auto-create Kafka Topic

true

Authentication

Apicurio supports anonymous reads over mutual TLS authentication. Open your values.yaml for your instance and add the following configuration.

platform:
  instance:
    apicurio-registry:
      clientMutualTLS: "REQUIRED"

There are 3 possible values for this configuration:

  • REQUEST : If the client presents its certificate during the connection creation, it’ll be authenticated. If not, the client will still be allowed to connect

  • REQUIRED : The client needs to present its certificates. Otherwise, the connection will be rejected

  • NONE : No client authentication using mTLS

By default, this will be set to REQUEST in a fresh installation of Axual platform

Authorised Access

If authorization is not enabled, Apicurio allows read/write access of subjects and versions to any type of client communication (example: Producer). But this can create inconsistencies with Axual Self Service applications. So it is recommended to enable client authorization.

In order to enable authorization together with HTTP Basic authentication (for write access), Apicurio requires a Keycloak instance. This can be achieved either by configuring an existing Keycloak installation to cater to Apicurio or by running a dedicated Keycloak instance provided by the helm charts.

Client Authorization Using External Keycloak Installation

Assuming the installation of Apicurio has an external Keycloak instance we will walk through the realm configuration needed by Apicurio.

In the Keycloak Admin Console create two new clients, in this example we name those apicurio-api, apicurio-web.

  1. apicurio-api:

    • Client ID: apicurio-api

    • Client Protocol: openid-connect

    • Access Type: bearer-only

    • Enable Service Accounts since that will be used

    • rest is defaults

    • Go to Roles tab and add roles sr-admin, sr-developer, and sr-readonly

    • Then go to Service Account Roles and make sure sr-admin is assigned to the service account role.

    • Lastly to Credentials tab and get the generated secret for the client. It will be needed later.

  2. apicurio-web:

    • Client ID: apicurio-web

    • Client Protocol: openid-connect

    • Access Type: public

    • Web Origins: *

    • Valid redirect urls: *

    • rest is defaults

    • Go to Roles tab and add roles sr-admin, sr-developer, and sr-readonly

The first will be used for write operations (used by instance-manager for schema uploads on topic applies). The second is used to access Apicurio’s UI from the browser.

The configuration of Keycloak for Apicurio is well documented within their product documentation further details can be found in their website (ref 1 section Configuring Apicurio Registry authentication and authorization with Keycloak, 2).

Once Keycloak has been configured as required you can proceed to configuring Apicurio itself as follows:

global:
  instance:
    apicurio:
      enabled: true
      keycloak:
        enabled: false  (1)

instance:
  apicurio-registry:
    security:
      authentication:
        enabled: true  (2)
      keycloak:
        realmOverride: "axual"  (3)
        url: "https://external-keycloak:8443/auth"  (4)
        apiClientId: "apicurio-api"
        webClientId: "apicurio-web"
    initKeycloakRealmJob:
      enabled: false  (5)
1 Disable dedicated keycloak since we are using an external instance
2 Enable auth for Apicurio access
3 Name of the realm in which the clients have been defined
4 URL of keycloak ending in /auth
5 Disable automatic realm initialization since the realm was edited to contain the required clients manually

Lastly you will need to configure instance manager such that it can authenticate against Keycloak in order to reach Apicurio.

instance:
  instanceapi:
    schemaRegistryMasterHostOverride: "axual-local-apicurio-registry"
    schemaRegistryMasterPortOverride: "20500"
    schemaRegistryMasterContextPathOverride: "/apis/ccompat/v6"
    schemaRegistryMasterUsernameOverride: "apicurio-api"
    schemaRegistryMasterPasswordOverride: ""  (1)
    schemaRegistryMasterAuthEnabled: "true"
1 Secret obtained from the last step of configuration apicurio-api

Client Authorization Using Internal Keycloak Installation

In case you prefer to have a dedicated Keycloak instance that runs together with other instance level components, Axual Helm Charts can install a new Keycloak instance alongside with Apicurio. Following is an example configuration

This Keycloak installation currently requires a Postgres database. Postgres is not shipped with Axual Helm Charts. It is best to use a managed (cloud) or on-prem Postgres instance for this.


instance:
  apicurio-registry:
    keycloak:
      persistence:
        dbHostaddress: my-postgresql
        dbPort: 5432
      secrets:
        database-creds:
          stringData:
            user: <user>
            password: <password>
            database: <database name>

Extracting Client Credentials for Apicurio API Write Access

Once the initKeycloakRealmJob runs, it should populate the necessary Keycloak clients and default client credentials. This can be used to communicate with Apicurio make write calls to it. By default, the configuration will allow anonymous users to make read calls to Apicurio APIs (mTLS can be enabled for read calls).

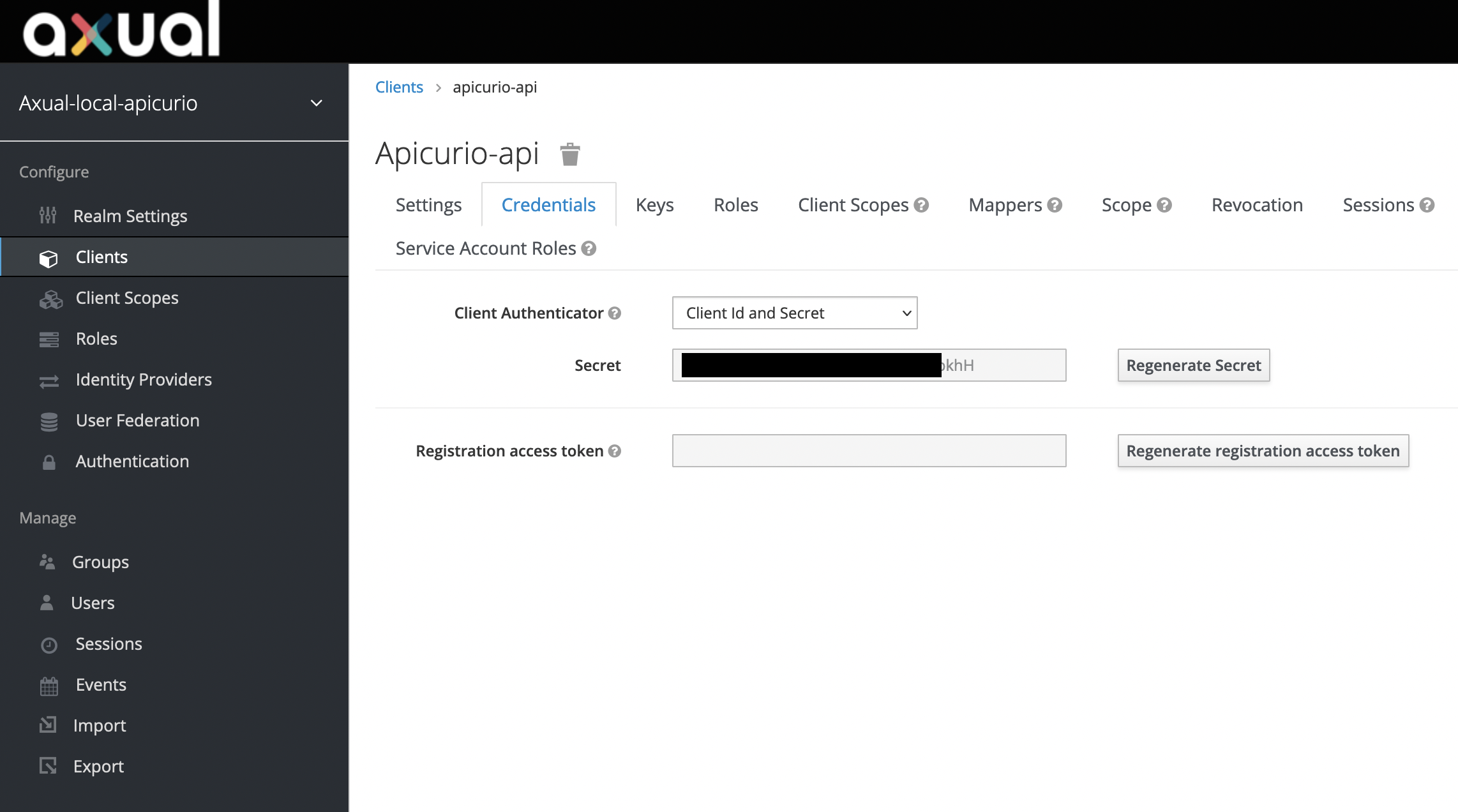

Following is a sample screenshot of how client credentials were configured in Apicurio API Client.
