Common operations

This doc provides steps to create a CI/CD user for common operations with Axual Platform.

Already have CI/CD User?

Please follow Use CI/CD user for integrate the API with the CI/CD user.

Identify necessary endpoints

Check which endpoints to use by looking at the information below.

Service Endpoint Purpose

Management API

"https://<MGMT_DOMAIN>/api"

Resource Server for creating streams, applications and more resource

Keycloak Token

"https://<MGMT_KEYCLOAK_DOMAIN>/auth/realms/<your-realm>/protocol/openid-connect/token"

Authorization Server for obtaining JWT token

In case you are not using any load-balancer, use the MGMT_API_HOST:MGMT_API_PORT and KEYCLOAK_HOSTNAME:KEYCLOAK_PORT

1. Create CI/CD User

Management API is a protected OAuth2 Resource Server. You need a valid JWT token to successfully interact with the Management API. The token can be obtained from the Authorization Server which is Keycloak. For this, a client registration must be done.

The flow is Resource Owner Password Credentials.

Required information to create a CI/CD user

Before moving forward, identify

  • Realm for which the CI/CD user is needed

  • CI/CD user first_name, last_name, and email

Create the CI/CD user in Keycloak

  1. Login into Keycloak Admin Console, usually done by port forwarding the Keycloak Admin port in HELM. In case you are using Axual CLI connect by using the KEYCLOAK_ADMIN_PORT.

  2. Switch to the correct realm.

    Select realm
  3. Click ok Users on the left-side menu.

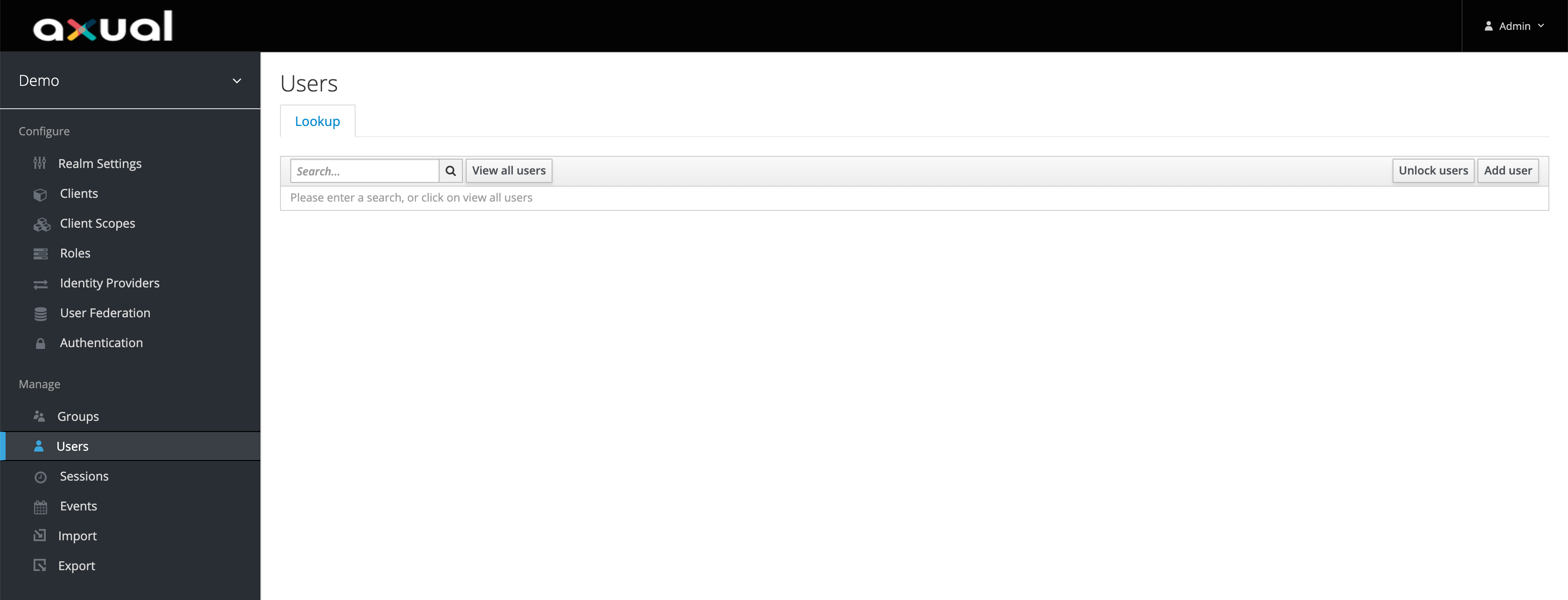

    Select user tab
  4. Click on Add user on the right side of the page.

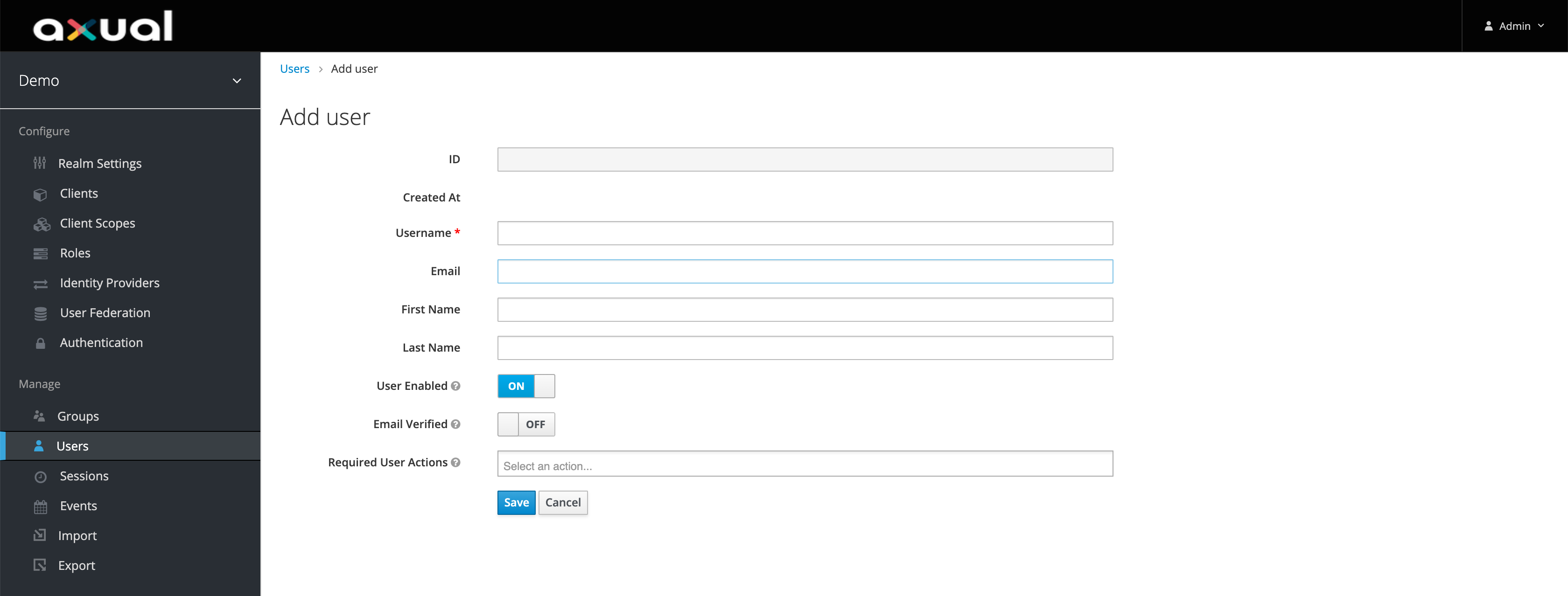

    Select add user
  5. Fill in the user details, make sure first_name, last_name, and email are filled in, else it will fail at later step.

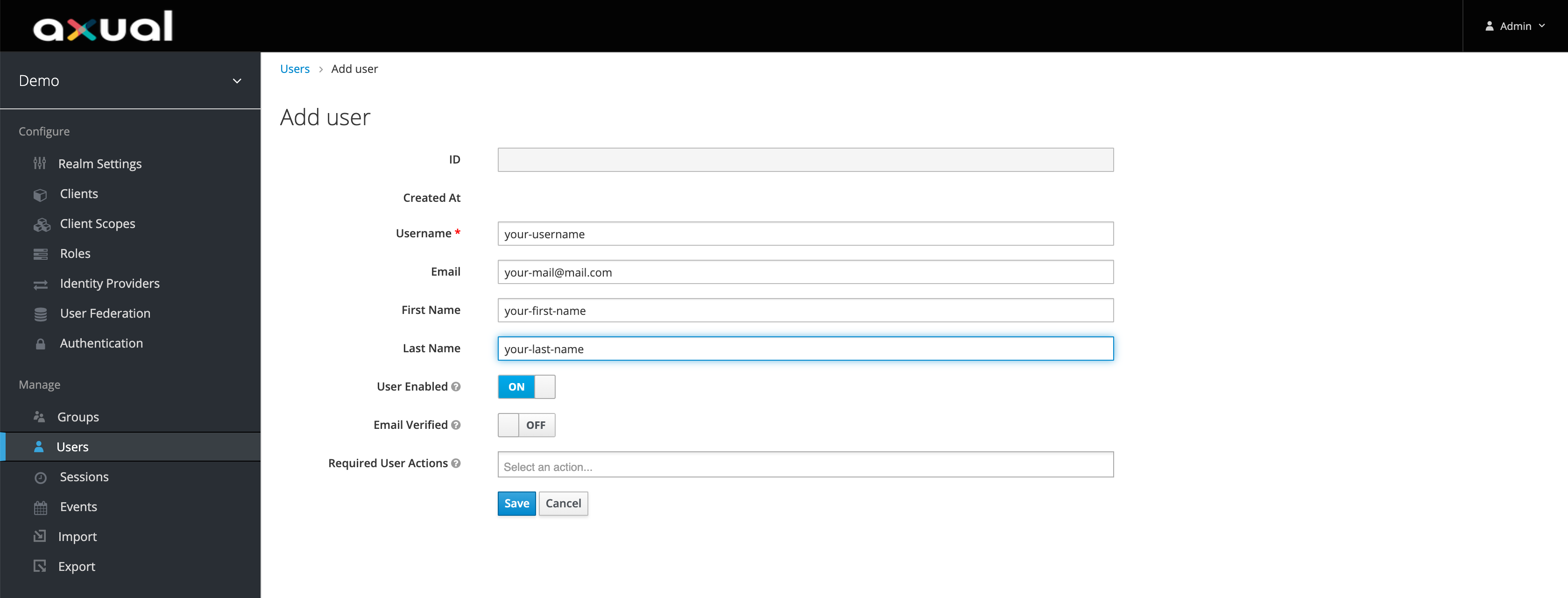

    Fill in user details
  6. Click on Save.

  7. Click on Credentials tba and set a decent password.

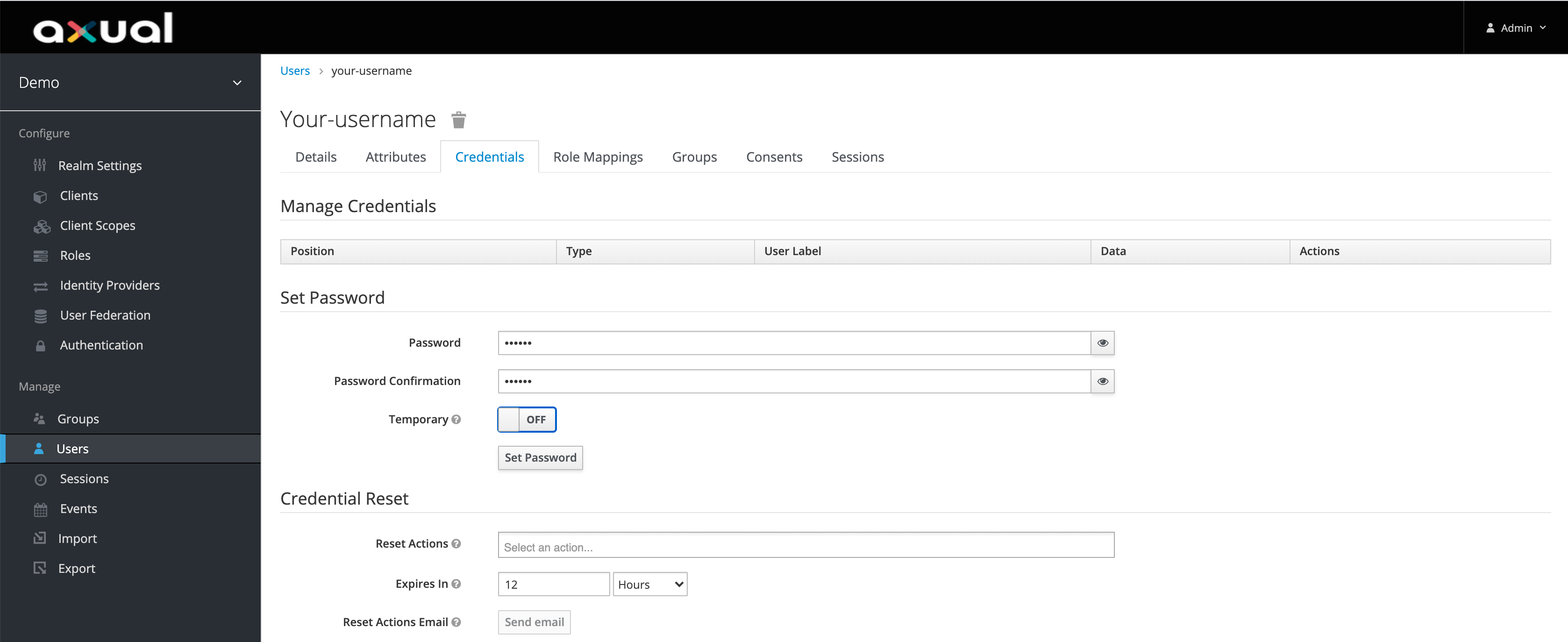

    Fill in user password
    Make sure Temporary is turned off
  8. Now you have a username and password you can use.

2. Persist the CI/CD user in the Self-Service

Obtain a JWT token

To obtain a JWT token, make a call to the Authorization Server (Keycloak) with client ID, username, password and realm to receive a JWT token.

Below is an example CURL call

curl --request POST \
 --url https://<MGMT_KEYCLOAK_DOMAIN>/auth/realms/<your_realm>/protocol/openid-connect/token \
 --header 'Content-Type: application/x-www-form-urlencoded' \
 --data client_id=self-service \
 --data username=<username> \
 --data password=<password> \
 --data realm=<your_realm> \
 --data grant_type=password
If this host is using self-signed certificates or certificates signed by an untrusted certificate authority, you need to add --insecure

You should get back a 200 OK response with the access_token (JWT) inside.

{
  "access_token": "eyJh...",
  "expires_in": 299,
  "refresh_expires_in": 3600,
  "refresh_token": "zfAu...",
  "token_type": "bearer",
  "not-before-policy": 0,
  "session_state": "899970b8-8058-48da-ae95-7797010f59da",
  "scope": "profile email"
}

Call Management API with JWT token

With the access_token received in previous request, make a curl call to Management API with the access_token as the Bearer value to /api/user for creating the CI/CD user in the Self-Service.

This call is required to find the CI/CD user in the Self-Service portal

Below is an example CURL call to retrieve the logged user information

curl --request GET \
 --url 'https:/<MGMT_DOMAIN>/api/user' \
 --header 'Authorization: Bearer <access_token>' \
 --header 'realm: <your_realm>'
If this host is using self-signed certificates or certificates signed by an untrusted certificate authority, you need to add --insecure

You should get back a response like below.

{
  "firstName": "<your_ci_cd_name>",
  "lastName": "<your_ci_cd_last_name>",
  "middleName": null,
  "emailAddress": {
    "email": "<your_ci_cd_email>"
  },
  "phoneNumber": null,
  "roles": [
    {
      "name": "ENVIRONMENT_AUTHOR"
    },
    {
      "name": "APPLICATION_AUTHOR"
    },
    {
      "name": "STREAM_AUTHOR"
    }
  ],
  "uid": "xyz",
  "created_at": "2021-04-17T14:59:31",
  "modified_at": "2021-04-17T14:59:31",
  "created_by": null,
  "modified_by": null,
  "_links": {
    "self": {
      "href": "https://<MGMT_DOMAIN>/api/users/xyz{?projection}",
      "templated": true,
      "title": "URI pointing to current request"
    },
    "user": {
      "href": "https://<MGMT_DOMAIN>/api/users/xyz{?projection}",
      "templated": true,
      "title": "A user"
    }
  }
}
Now you can share the CI/CD credentials with the developer to perform calls to Management API
